octave::Object Class Reference

#include "Object.h"

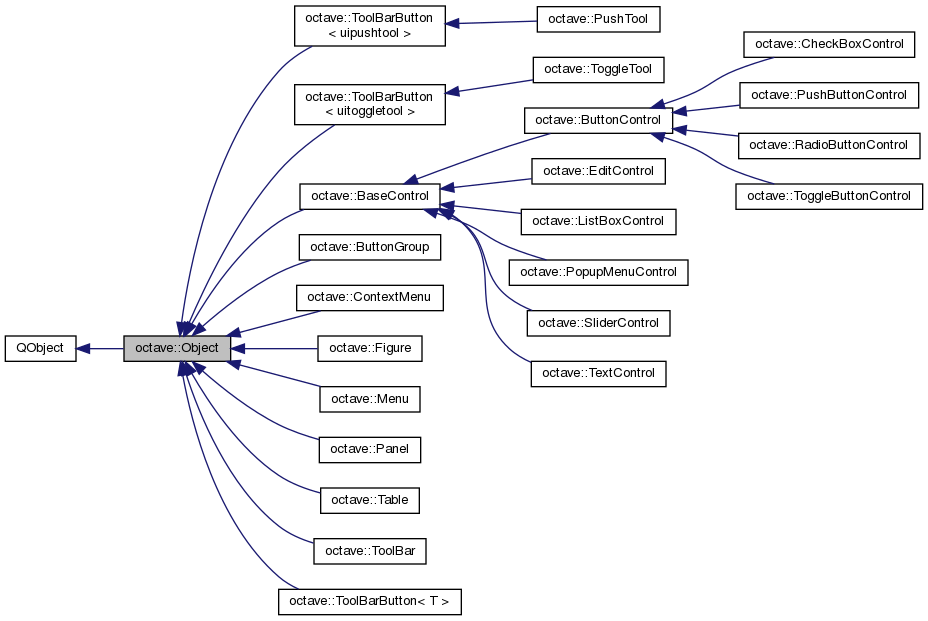

Inheritance diagram for octave::Object:

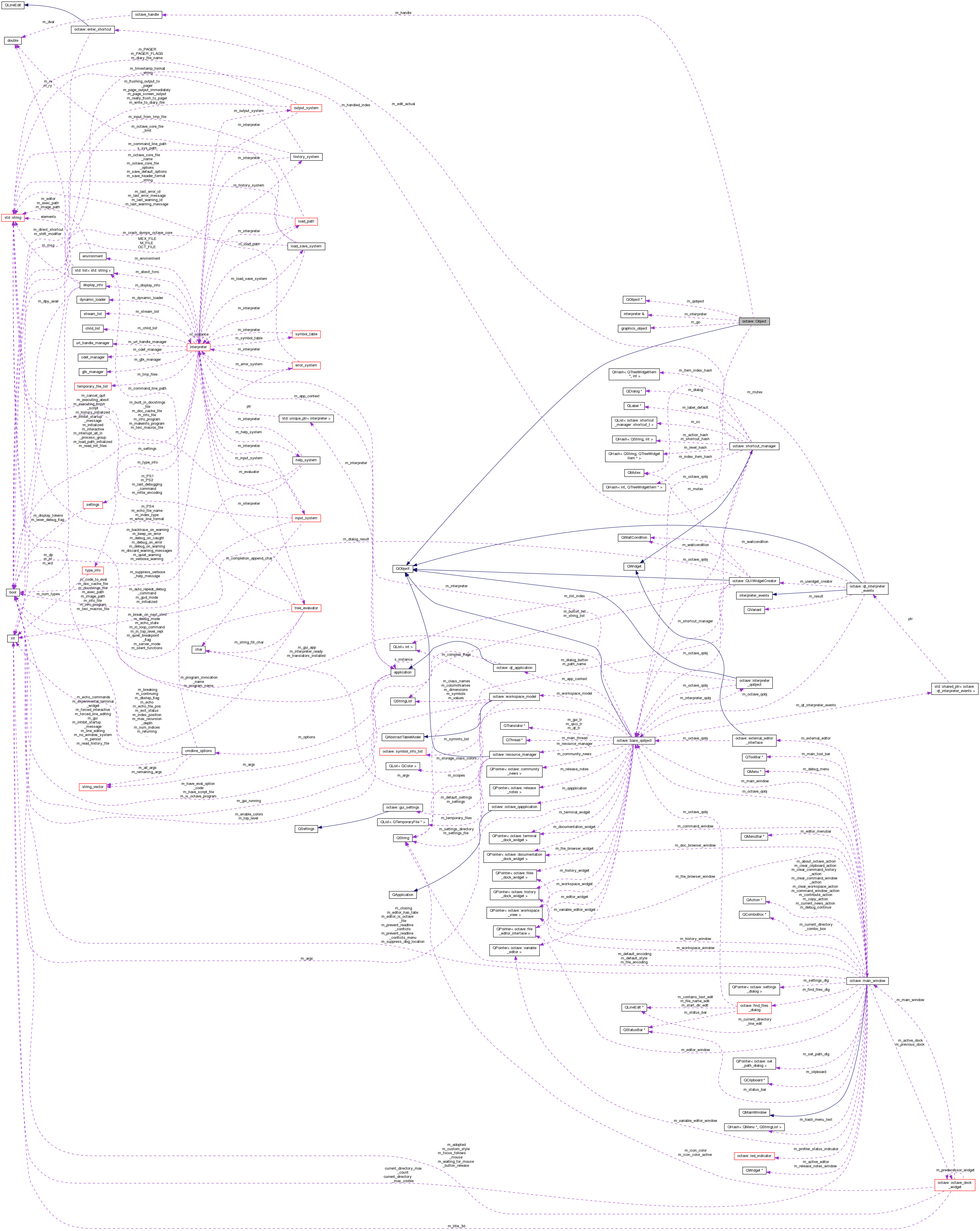

Collaboration diagram for octave::Object:

Public Slots
void	objectDestroyed (QObject *obj=nullptr)
void	slotFinalize (void)
void	slotPrint (const QString &file_cmd, const QString &term)
void	slotRedraw (void)
void	slotShow (void)
void	slotUpdate (int pId)

Signals
void	gh_callback_event (const graphics_handle &h, const std::string &name)
void	gh_callback_event (const graphics_handle &h, const std::string &name, const octave_value &data)
void	gh_set_event (const graphics_handle &h, const std::string &name, const octave_value &value)
void	gh_set_event (const graphics_handle &h, const std::string &name, const octave_value &value, bool notify_toolkit)
void	gh_set_event (const graphics_handle &h, const std::string &name, const octave_value &value, bool notify_toolkit, bool redraw_figure)
void	interpreter_event (const octave::fcn_callback &fcn)
void	interpreter_event (const octave::meth_callback &meth)

Public Member Functions
	Object (octave::base_qobject &qobj, octave::interpreter &interp, const graphics_object &go, QObject *obj=nullptr)
virtual	~Object (void)
virtual void	do_connections (const QObject *receiver, const QObject *emitter=nullptr)
virtual Container *	innerContainer (void)=0
graphics_object	object (void) const
base_properties &	properties (void)
template<typename T >
T::properties &	properties (void)
const base_properties &	properties (void) const
template<typename T >
const T::properties &	properties (void) const
virtual QObject *	qObject (void)
template<typename T >
T *	qWidget (void)

Static Public Member Functions
static Object *	fromQObject (QObject *obj)

Protected Member Functions
virtual void	beingDeleted (void)
virtual void	finalize (void)
void	init (QObject *obj, bool callBase=false)
virtual void	print (const QString &file_cmd, const QString &term)
virtual void	redraw (void)
virtual void	show (void)
virtual void	update (int pId)

Static Protected Member Functions
static Object *	parentObject (octave::interpreter &interp, const graphics_object &go)

Protected Attributes
graphics_object	m_go
graphics_handle	m_handle
octave::interpreter &	m_interpreter
octave::base_qobject &	m_octave_qobj
QObject *	m_qobject

Detailed Description

Definition at line 50 of file Object.h.

Constructor & Destructor Documentation

Object()

octave::Object::Object	(	octave::base_qobject &	qobj,
		octave::interpreter &	interp,
		const graphics_object &	go,
		QObject *	obj = nullptr
	)

Definition at line 44 of file Object.cc.

References init(), m_handle, m_interpreter, and octave_handle::value().

~Object()

octave::Object::~Object ( void  )

virtual

Definition at line 79 of file Object.cc.

Member Function Documentation

beingDeleted()

void octave::Object::beingDeleted ( void  )

protectedvirtual

Reimplemented in octave::Figure, and octave::ToolBar.

Definition at line 191 of file Object.cc.

Referenced by slotUpdate().

do_connections()

void octave::Object::do_connections ( const QObject *  receiver, const QObject *  emitter = nullptr  )

virtual

Reimplemented in octave::Figure, and octave::Panel.

Definition at line 225 of file Object.cc.

References fcn_callback, gh_callback_event(), gh_set_event(), and interpreter_event().

Referenced by octave::qt_graphics_toolkit::create_object(), octave::Figure::do_connections(), and octave::Panel::do_connections().

finalize()

void octave::Object::finalize ( void  )

protectedvirtual

Definition at line 168 of file Object.cc.

References m_qobject.

Referenced by slotFinalize().

fromQObject()

Object * octave::Object::fromQObject ( QObject *  obj )

static

Definition at line 214 of file Object.cc.

Referenced by octave::ToolBar::ToolBar(), octave::ButtonGroup::buttonClicked(), octave::ButtonGroup::buttonToggled(), octave::Figure::redraw(), octave::Container::resizeEvent(), octave::Figure::update(), and octave::Menu::updateSiblingPositions().

gh_callback_event [1/2]

void octave::Object::gh_callback_event ( const graphics_handle &  h, const std::string &  name  )

signal

Referenced by octave::ContextMenu::aboutToShow(), octave::Menu::actionHovered(), octave::Menu::actionTriggered(), octave::ButtonGroup::buttonClicked(), octave::ButtonControl::clicked(), octave::PushTool::clicked(), octave::PopupMenuControl::currentIndexChanged(), do_connections(), octave::EditControl::editingFinished(), octave::BaseControl::eventFilter(), octave::Table::eventFilter(), octave::Figure::eventNotifyBefore(), octave::Table::itemSelectionChanged(), octave::EditControl::returnPressed(), octave::Table::sendCellEditCallback(), octave::ListBoxControl::sendSelectionChange(), octave::ButtonControl::toggled(), octave::ToggleTool::triggered(), and octave::SliderControl::valueChanged().

gh_callback_event [2/2]

void octave::Object::gh_callback_event ( const graphics_handle &  h, const std::string &  name, const octave_value &  data  )

signal

gh_set_event [1/3]

void octave::Object::gh_set_event ( const graphics_handle &  h, const std::string &  name, const octave_value &  value  )

signal

Referenced by octave::ContextMenu::aboutToHide(), octave::ContextMenu::aboutToShow(), octave::ButtonGroup::buttonToggled(), octave::Table::checkBoxClicked(), octave::Table::comboBoxCurrentIndexChanged(), octave::PopupMenuControl::currentIndexChanged(), do_connections(), octave::EditControl::editingFinished(), octave::BaseControl::eventFilter(), octave::Table::eventFilter(), octave::Table::itemChanged(), octave::EditControl::returnPressed(), octave::ListBoxControl::sendSelectionChange(), octave::ButtonControl::toggled(), octave::ToggleTool::triggered(), octave::PopupMenuControl::update(), octave::Figure::updateBoundingBox(), octave::Table::updateExtent(), and octave::SliderControl::valueChanged().

gh_set_event [2/3]

void octave::Object::gh_set_event ( const graphics_handle &  h, const std::string &  name, const octave_value &  value, bool  notify_toolkit  )

signal

gh_set_event [3/3]

void octave::Object::gh_set_event ( const graphics_handle &  h, const std::string &  name, const octave_value &  value, bool  notify_toolkit, bool  redraw_figure  )

signal

init()

void octave::Object::init ( QObject *  obj, bool  callBase = false  )

protected

Definition at line 62 of file Object.cc.

References m_qobject, and objectDestroyed().

Referenced by Object(), and octave::BaseControl::init().

innerContainer()

virtual Container * octave::Object::innerContainer ( void  )

pure virtual

Implemented in octave::BaseControl, octave::ButtonGroup, octave::ContextMenu, octave::Figure, octave::Menu, octave::Panel, octave::Table, octave::ToolBar, octave::ToolBarButton< T >, octave::ToolBarButton< uipushtool >, and octave::ToolBarButton< uitoggletool >.

Referenced by octave::ButtonGroup::create(), octave::CheckBoxControl::create(), octave::EditControl::create(), octave::ListBoxControl::create(), octave::Panel::create(), octave::PopupMenuControl::create(), octave::PushButtonControl::create(), octave::RadioButtonControl::create(), octave::SliderControl::create(), octave::Table::create(), octave::TextControl::create(), octave::ToggleButtonControl::create(), octave::Utils::figureCurrentPoint(), and octave::Figure::update().

interpreter_event [1/2]

void octave::Object::interpreter_event ( const octave::fcn_callback &  fcn )

signal

Referenced by do_connections().

interpreter_event [2/2]

void octave::Object::interpreter_event ( const octave::meth_callback &  meth )

signal

object()

graphics_object octave::Object::object

(

void

)

const

Definition at line 83 of file Object.cc.

References m_go, m_handle, m_interpreter, and octave_handle::value().

Referenced by octave::BaseControl::eventFilter(), octave::ButtonGroup::eventFilter(), octave::Panel::eventFilter(), octave::Table::eventFilter(), properties(), octave::Container::resizeEvent(), octave::Table::updateExtent(), octave::Figure::updateFigureHeight(), octave::Menu::updateSiblingPositions(), and octave::SliderControl::valueChanged().

objectDestroyed

void octave::Object::objectDestroyed ( QObject *  obj = nullptr )

slot

Definition at line 194 of file Object.cc.

References m_qobject.

Referenced by init().

parentObject()

Object * octave::Object::parentObject ( octave::interpreter &  interp, const graphics_object &  go  )

staticprotected

Definition at line 201 of file Object.cc.

References octave::qt_graphics_toolkit::toolkitObject().

Referenced by octave::RadioButtonControl::RadioButtonControl(), octave::ToggleButtonControl::ToggleButtonControl(), octave::ButtonGroup::create(), octave::CheckBoxControl::create(), octave::ContextMenu::create(), octave::EditControl::create(), octave::ListBoxControl::create(), octave::Menu::create(), octave::Panel::create(), octave::PopupMenuControl::create(), octave::PushButtonControl::create(), octave::PushTool::create(), octave::RadioButtonControl::create(), octave::SliderControl::create(), octave::Table::create(), octave::TextControl::create(), octave::ToggleButtonControl::create(), octave::ToggleTool::create(), octave::ToolBar::create(), and octave::ButtonControl::update().

print()

void octave::Object::print ( const QString &  file_cmd, const QString &  term  )

protectedvirtual

Reimplemented in octave::Figure.

Definition at line 187 of file Object.cc.

Referenced by slotPrint().

properties() [1/4]

base_properties & octave::Object::properties ( void  )

inline

Definition at line 60 of file Object.h.

References object().

Referenced by octave::ButtonGroup::buttonClicked(), octave::ButtonGroup::buttonToggled(), octave::ButtonGroup::eventFilter(), octave::Table::eventFilter(), and octave::Utils::figureCurrentPoint().

properties() [2/4]

template<typename T >

T::properties & octave::Object::properties ( void  )

inline

Definition at line 67 of file Object.h.

References object(), and octave::Utils::properties().

properties() [3/4]

const base_properties & octave::Object::properties ( void  ) const

inline

Definition at line 63 of file Object.h.

References object().

properties() [4/4]

template<typename T >

const T::properties & octave::Object::properties ( void  ) const

inline

Definition at line 74 of file Object.h.

References object(), and octave::Utils::properties().

qObject()

virtual QObject * octave::Object::qObject ( void  )

inlinevirtual

Definition at line 82 of file Object.h.

References m_qobject.

Referenced by octave::BaseControl::BaseControl(), octave::Table::Table(), octave::Menu::create(), octave::ButtonGroup::eventFilter(), octave::Panel::eventFilter(), octave::ToolBar::eventFilter(), and qWidget().

qWidget()

template<typename T >

T * octave::Object::qWidget ( void  )

inline

Definition at line 85 of file Object.h.

References qObject().

Referenced by octave::ContextMenu::create(), octave::PushTool::create(), octave::ToggleTool::create(), octave::ToolBar::create(), octave::ContextMenu::executeAt(), and octave::Container::resizeEvent().

redraw()

void octave::Object::redraw ( void  )

protectedvirtual

Reimplemented in octave::BaseControl, octave::ButtonGroup, octave::Figure, octave::Panel, and octave::Table.

Definition at line 179 of file Object.cc.

Referenced by slotRedraw().

show()

void octave::Object::show ( void  )

protectedvirtual

Reimplemented in octave::Figure.

Definition at line 183 of file Object.cc.

Referenced by octave::ButtonGroup::ButtonGroup(), and slotShow().

slotFinalize

void octave::Object::slotFinalize ( void  )

slot

Definition at line 121 of file Object.cc.

References finalize(), and m_interpreter.

slotPrint

void octave::Object::slotPrint ( const QString &  file_cmd, const QString &  term  )

slot

Definition at line 153 of file Object.cc.

References m_interpreter, and print().

slotRedraw

void octave::Object::slotRedraw ( void  )

slot

Definition at line 131 of file Object.cc.

References m_interpreter, and redraw().

Referenced by octave::ObjectProxy::init(), and octave::Figure::redraw().

slotShow

void octave::Object::slotShow ( void  )

slot

Definition at line 142 of file Object.cc.

References m_interpreter, and show().

Referenced by octave::ObjectProxy::init().

slotUpdate

void octave::Object::slotUpdate ( int  pId )

slot

Definition at line 98 of file Object.cc.

References beingDeleted(), m_interpreter, and update().

Referenced by octave::ObjectProxy::init().

update()

void octave::Object::update ( int  pId )

protectedvirtual

Reimplemented in octave::BaseControl, octave::ButtonControl, octave::ButtonGroup, octave::CheckBoxControl, octave::ContextMenu, octave::EditControl, octave::Figure, octave::ListBoxControl, octave::Menu, octave::Panel, octave::PopupMenuControl, octave::PushButtonControl, octave::PushTool, octave::RadioButtonControl, octave::SliderControl, octave::Table, octave::TextControl, octave::ToggleButtonControl, octave::ToggleTool, octave::ToolBar, octave::ToolBarButton< T >, octave::ToolBarButton< uipushtool >, and octave::ToolBarButton< uitoggletool >.

Definition at line 164 of file Object.cc.

Referenced by slotUpdate(), octave::ContextMenu::update(), octave::Menu::update(), octave::ToolBar::update(), and octave::ToolBarButton< T >::update().

Member Data Documentation

m_go

graphics_object octave::Object::m_go

protected

Definition at line 150 of file Object.h.

Referenced by object().

m_handle

graphics_handle octave::Object::m_handle

protected

Definition at line 157 of file Object.h.

Referenced by octave::ButtonGroup::ButtonGroup(), octave::Figure::Figure(), Object(), octave::Panel::Panel(), octave::ContextMenu::aboutToHide(), octave::ContextMenu::aboutToShow(), octave::Menu::actionHovered(), octave::Menu::actionTriggered(), octave::Figure::beingDeleted(), octave::ButtonGroup::buttonClicked(), octave::ButtonGroup::buttonToggled(), octave::Table::checkBoxClicked(), octave::ButtonControl::clicked(), octave::PushTool::clicked(), octave::Table::comboBoxCurrentIndexChanged(), octave::PopupMenuControl::currentIndexChanged(), octave::Figure::do_connections(), octave::Panel::do_connections(), octave::EditControl::editingFinished(), octave::Figure::enableMouseTracking(), octave::BaseControl::eventFilter(), octave::Table::eventFilter(), octave::Figure::eventNotifyBefore(), octave::Table::itemChanged(), octave::Table::itemSelectionChanged(), object(), octave::Figure::print(), octave::ButtonGroup::redraw(), octave::Figure::redraw(), octave::Panel::redraw(), octave::EditControl::returnPressed(), octave::Table::sendCellEditCallback(), octave::ListBoxControl::sendSelectionChange(), octave::Figure::slotGetPixels(), octave::ButtonControl::toggled(), octave::ToggleTool::triggered(), octave::Figure::update(), octave::PopupMenuControl::update(), octave::Figure::updateBoundingBox(), and octave::SliderControl::valueChanged().

m_interpreter

octave::interpreter& octave::Object::m_interpreter

protected

Definition at line 140 of file Object.h.

Referenced by Object(), octave::ButtonGroup::buttonClicked(), octave::ButtonGroup::buttonToggled(), octave::Table::checkBoxClicked(), octave::Table::comboBoxCurrentIndexChanged(), octave::BaseControl::eventFilter(), octave::ButtonGroup::eventFilter(), octave::Panel::eventFilter(), octave::Table::eventFilter(), octave::Figure::eventNotifyAfter(), octave::Figure::eventNotifyBefore(), octave::Figure::figureWindowShown(), octave::Figure::fileName(), octave::Table::itemChanged(), octave::Figure::mouseMode(), object(), octave::Figure::screenChanged(), octave::Figure::setFileName(), slotFinalize(), octave::Figure::slotGetPixels(), slotPrint(), slotRedraw(), slotShow(), slotUpdate(), octave::ButtonControl::toggled(), octave::ButtonControl::update(), octave::ButtonGroup::update(), octave::Figure::update(), octave::Figure::updateFigureHeight(), and octave::SliderControl::valueChanged().

m_octave_qobj

octave::base_qobject& octave::Object::m_octave_qobj

protected

Definition at line 139 of file Object.h.

m_qobject

QObject* octave::Object::m_qobject

protected

Definition at line 159 of file Object.h.

Referenced by octave::ListBoxControl::eventFilter(), finalize(), init(), objectDestroyed(), and qObject().

---

The documentation for this class was generated from the following files:

• libgui/graphics/Object.h
• libgui/graphics/Object.cc
