octave::base_qobject Class Reference

Base class for Octave interfaces that use Qt. More...

#include "octave-qobject.h"

Inheritance diagram for octave::base_qobject:

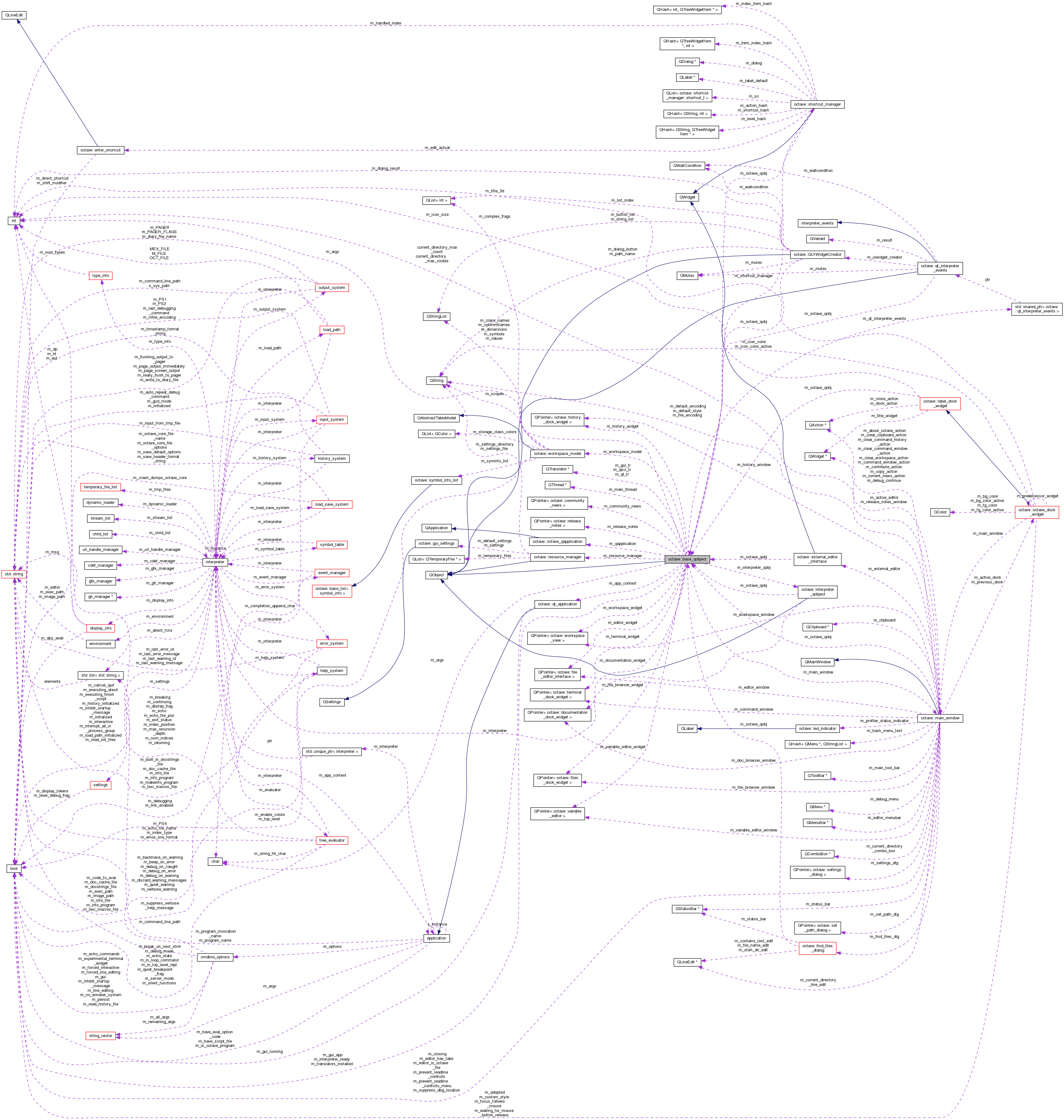

Collaboration diagram for octave::base_qobject:

Public Slots
void	close_gui (void)
void	copy_image_to_clipboard (const QString &file, bool remove_file)
void	execute_command (const QString &command)
void	handle_variable_editor_update (void)
void	interpreter_event (const fcn_callback &fcn)
void	interpreter_event (const meth_callback &meth)
void	interpreter_interrupt (void)
void	interpreter_pause (void)
void	interpreter_ready (void)
void	interpreter_resume (void)
void	interpreter_stop (void)
void	show_command_history_window (void)
void	show_community_news (int serial)
void	show_documentation_window (const QString &file)
void	show_file_browser_window (void)
void	show_release_notes (void)
void	show_terminal_window (void)
void	show_variable_editor_window (const QString &name, const octave_value &value)
void	show_workspace_window (void)
void	start_gui (bool gui_app)

Public Member Functions
	base_qobject (qt_application &app_context, bool gui_app=false)
	~base_qobject (void)
qt_application &	app_context (void)
QPointer< community_news >	community_news_widget (int serial=-1)
void	config_translators (void)
virtual bool	confirm_shutdown (void)
template<typename T >
void	connect_interpreter_events (T *widget)
QPointer< documentation_dock_widget >	documentation_widget (main_window *mw=nullptr)
QPointer< file_editor_interface >	editor_widget (main_window *mw=nullptr)
int	exec (void)
bool	experimental_terminal_widget (void) const
QPointer< files_dock_widget >	file_browser_widget (main_window *mw=nullptr)
main_window *	get_main_window (void)
std::shared_ptr< qt_interpreter_events >	get_qt_interpreter_events (void)
resource_manager &	get_resource_manager (void)
shortcut_manager &	get_shortcut_manager (void)
workspace_model *	get_workspace_model (void)
bool	gui_running (void) const
bool	have_terminal_window (void) const
QPointer< history_dock_widget >	history_widget (main_window *mw=nullptr)
interpreter_qobject *	interpreter_qobj (void)
bool	is_gui_app (void) const
QThread *	main_thread (void)
QApplication *	qapplication (void)
qt_interpreter_events *	qt_link (void)
QPointer< release_notes >	release_notes_widget (void)
void	start_main_thread (void)
QPointer< terminal_dock_widget >	terminal_widget (main_window *mw=nullptr)
QPointer< variable_editor >	variable_editor_widget (main_window *mw=nullptr)
QPointer< workspace_view >	workspace_widget (main_window *mw=nullptr)

Protected Attributes
qt_application &	m_app_context
int	m_argc
char **	m_argv
QPointer< community_news >	m_community_news
QPointer< documentation_dock_widget >	m_documentation_widget
QPointer< file_editor_interface >	m_editor_widget
QPointer< files_dock_widget >	m_file_browser_widget
bool	m_gui_app
QTranslator *	m_gui_tr
QPointer< history_dock_widget >	m_history_widget
interpreter_qobject *	m_interpreter_qobj
bool	m_interpreter_ready
QThread *	m_main_thread
main_window *	m_main_window
octave_qapplication *	m_qapplication
QTranslator *	m_qsci_tr
std::shared_ptr< qt_interpreter_events >	m_qt_interpreter_events
QTranslator *	m_qt_tr
QPointer< release_notes >	m_release_notes
resource_manager	m_resource_manager
shortcut_manager	m_shortcut_manager
QPointer< terminal_dock_widget >	m_terminal_widget
bool	m_translators_installed
QPointer< variable_editor >	m_variable_editor_widget
workspace_model *	m_workspace_model
QPointer< workspace_view >	m_workspace_widget

Detailed Description

Base class for Octave interfaces that use Qt.

There are two classes derived from this one. One provides a command-line interface that may use Qt graphics and another provides the full GUI experience.

Definition at line 98 of file octave-qobject.h.

Constructor & Destructor Documentation

base_qobject()

octave::base_qobject::base_qobject	(	qt_application &	app_context,
		bool	gui_app = false
	)

Definition at line 170 of file octave-qobject.cc.

References config_translators(), copy_image_to_clipboard(), octave::qt_interpreter_events::copy_image_to_clipboard_signal(), octave::qt_interpreter_events::edit_variable_signal(), application::experimental_terminal_widget(), octave::main_window::focus_window(), octave::qt_interpreter_events::focus_window_signal(), octave::sys::env::getenv(), octave::qt_application::gui_running(), octave::main_window::handle_octave_ready(), octave::shortcut_manager::init_data(), octave::octave_qapplication::interpreter_event(), interpreter_event(), interpreter_ready(), m_app_context, m_interpreter_qobj, m_interpreter_ready, m_main_thread, m_main_window, m_qapplication, m_resource_manager, m_shortcut_manager, octave::message_handler(), OCTAVE_VERSION, qt_link(), octave::interpreter_qobject::ready(), octave::resource_manager::reload_settings(), octave::qt_interpreter_events::show_command_history_signal(), show_command_history_window(), show_community_news(), octave::main_window::show_community_news_signal(), octave::qt_interpreter_events::show_community_news_signal(), octave::qt_interpreter_events::show_documentation_signal(), show_documentation_window(), octave::qt_interpreter_events::show_file_browser_signal(), show_file_browser_window(), show_release_notes(), octave::main_window::show_release_notes_signal(), octave::qt_interpreter_events::show_release_notes_signal(), show_terminal_window(), octave::qt_interpreter_events::show_terminal_window_signal(), show_variable_editor_window(), octave::qt_interpreter_events::show_workspace_signal(), show_workspace_window(), octave::interpreter_qobject::shutdown_finished(), start_gui(), octave::qt_interpreter_events::start_gui_signal(), and start_main_thread().

~base_qobject()

octave::base_qobject::~base_qobject

(

void

)

Definition at line 327 of file octave-qobject.cc.

References string_vector::delete_c_str_vec(), m_argv, m_community_news, m_documentation_widget, m_editor_widget, m_file_browser_widget, m_gui_tr, m_history_widget, m_interpreter_qobj, m_main_window, m_qapplication, m_qsci_tr, m_qt_tr, m_terminal_widget, m_variable_editor_widget, m_workspace_model, and m_workspace_widget.

Member Function Documentation

app_context()

qt_application & octave::base_qobject::app_context ( void  )

inline

Definition at line 117 of file octave-qobject.h.

References m_app_context.

Referenced by octave::interpreter_qobject::execute().

close_gui

void octave::base_qobject::close_gui ( void  )

slot

Definition at line 927 of file octave-qobject.cc.

References application::experimental_terminal_widget(), interpreter::get_app_context(), cmdline_options::gui(), octave::qt_application::gui_running(), interpreter_event(), m_app_context, m_main_window, application::options(), and interpreter::quit().

Referenced by start_gui().

community_news_widget()

QPointer< community_news > octave::base_qobject::community_news_widget

(

int

serial = -1

)

Definition at line 722 of file octave-qobject.cc.

References m_community_news.

Referenced by show_community_news().

config_translators()

void octave::base_qobject::config_translators

(

void

)

Definition at line 391 of file octave-qobject.cc.

References octave::resource_manager::config_translators(), m_gui_tr, m_qapplication, m_qsci_tr, m_qt_tr, m_resource_manager, and m_translators_installed.

Referenced by base_qobject(), and octave::main_window::main_window().

confirm_shutdown()

bool octave::base_qobject::confirm_shutdown ( void  )

virtual

Definition at line 739 of file octave-qobject.cc.

References octave::main_window::confirm_shutdown(), and m_main_window.

connect_interpreter_events()

template<typename T >

void octave::base_qobject::connect_interpreter_events ( T *  widget )

inline

Definition at line 206 of file octave-qobject.h.

References interpreter_event().

Referenced by octave::main_window::adopt_editor_widget(), and terminal_widget().

copy_image_to_clipboard

void octave::base_qobject::copy_image_to_clipboard ( const QString &  file, bool  remove_file  )

slot

Definition at line 1016 of file octave-qobject.cc.

Referenced by base_qobject().

documentation_widget()

QPointer< documentation_dock_widget > octave::base_qobject::documentation_widget

(

main_window *

mw = nullptr

)

Definition at line 497 of file octave-qobject.cc.

References m_documentation_widget, qt_link(), octave::qt_interpreter_events::register_documentation_signal(), octave::documentation_dock_widget::registerDoc(), octave::qt_interpreter_events::unregister_documentation_signal(), and octave::documentation_dock_widget::unregisterDoc().

Referenced by octave::main_window::adopt_documentation_widget(), and show_documentation_window().

editor_widget()

QPointer< file_editor_interface > octave::base_qobject::editor_widget

(

main_window *

mw = nullptr

)

Definition at line 678 of file octave-qobject.cc.

References m_editor_widget.

exec()

int octave::base_qobject::exec

(

void

)

Definition at line 422 of file octave-qobject.cc.

References m_main_thread, and m_qapplication.

Referenced by octave::qt_application::execute().

execute_command

void octave::base_qobject::execute_command ( const QString &  command )

slot

Definition at line 909 of file octave-qobject.cc.

References interpreter::eval(), and interpreter_event().

Referenced by variable_editor_widget().

experimental_terminal_widget()

bool octave::base_qobject::experimental_terminal_widget

(

void

)

const

Definition at line 439 of file octave-qobject.cc.

References application::experimental_terminal_widget(), and m_app_context.

Referenced by octave::main_window::adopt_terminal_widget(), octave::main_window::closeEvent(), octave::interpreter_qobject::execute(), octave::main_window::handle_octave_ready(), octave::interpreter_qobject::pause(), octave::interpreter_qobject::resume(), octave::interpreter_qobject::stop(), and terminal_widget().

file_browser_widget()

QPointer< files_dock_widget > octave::base_qobject::file_browser_widget

(

main_window *

mw = nullptr

)

Definition at line 524 of file octave-qobject.cc.

References octave::qt_interpreter_events::directory_changed_signal(), m_file_browser_widget, qt_link(), and octave::files_dock_widget::update_octave_directory().

Referenced by octave::main_window::adopt_file_browser_widget(), and show_file_browser_window().

get_main_window()

main_window * octave::base_qobject::get_main_window ( void  )

inline

Definition at line 134 of file octave-qobject.h.

References m_main_window.

get_qt_interpreter_events()

std::shared_ptr< qt_interpreter_events > octave::base_qobject::get_qt_interpreter_events ( void  )

inline

Definition at line 149 of file octave-qobject.h.

References m_qt_interpreter_events.

Referenced by octave::interpreter_qobject::execute().

get_resource_manager()

resource_manager & octave::base_qobject::get_resource_manager ( void  )

inline

Definition at line 139 of file octave-qobject.h.

References m_resource_manager.

Referenced by octave::documentation::documentation(), octave::documentation_bookmarks::documentation_bookmarks(), octave::dw_main_window::dw_main_window(), octave::file_editor_tab::file_editor_tab(), octave::FileDialog::FileDialog(), octave::files_dock_widget::files_dock_widget(), octave::find_files_dialog::find_files_dialog(), octave::initial_page::initial_page(), octave::main_window::main_window(), octave::octave_dock_widget::octave_dock_widget(), octave::set_path_dialog::set_path_dialog(), octave::settings_dialog::settings_dialog(), octave::terminal_dock_widget::terminal_dock_widget(), octave::variable_dock_widget::variable_dock_widget(), octave::workspace_view::workspace_view(), octave::welcome_wizard::accept(), octave::variable_editor_view::add_edit_actions(), octave::find_files_dialog::browse_folders(), octave::main_window::browse_for_directory(), annotation_dialog::button_clicked(), octave::file_editor::call_custom_editor(), octave::variable_dock_widget::change_floating(), octave::variable_dock_widget::change_fullscreen(), octave::file_editor::closeEvent(), octave::octave_qscintilla::comment_string(), octave::main_window::confirm_shutdown(), octave::community_news::construct(), QTerminal::construct(), octave::history_dock_widget::construct(), octave::file_editor::construct(), octave::main_window::construct_debug_menu_item(), octave::main_window::construct_edit_menu(), octave::main_window::construct_file_menu(), octave::main_window::construct_new_menu(), octave::documentation::construct_tool_bar(), octave::main_window::construct_tool_bar(), octave::variable_editor::construct_tool_bar(), octave::files_dock_widget::contextmenu_requested(), octave::octave_qscintilla::contextmenu_run(), octave::documentation_bookmarks::ctx_menu(), octave::octave_qscintilla::ctx_menu_run_finished(), octave::history_dock_widget::ctxMenu(), octave::file_editor_tab::detect_eol_mode(), octave::files_dock_widget::display_directory(), octave::file_editor_tab::do_comment_selected_text(), octave::main_window::do_reset_windows(), octave::variable_editor_stack::do_save(), octave::variable_editor::edit_variable(), octave::file_editor::empty_script(), octave::external_editor_interface::external_editor(), octave::main_window::focus_console_after_command(), octave::settings_dialog::get_dir(), octave::settings_dialog::get_lexer_settings(), octave::file_editor_tab::handle_decode_warning_answer(), octave::file_editor::handle_enter_debug_mode(), octave::file_editor::handle_file_name_changed(), octave::main_window::handle_load_workspace_request(), octave::main_window::handle_octave_ready(), octave::main_window::handle_save_workspace_request(), octave::file_editor::handle_visibility(), octave::workspace_view::header_contextmenu_requested(), octave::files_dock_widget::headercontextmenu_requested(), octave::shortcut_manager::import_export(), annotation_dialog::init(), octave::shortcut_manager::init(), octave::shortcut_manager::init_data(), octave::file_editor_tab::load_file(), octave::Canvas::make_cursor(), octave::octave_dock_widget::make_widget(), octave::file_editor::mru_menu_update(), octave::file_editor_tab::new_file(), octave::main_window::notice_settings(), octave::files_dock_widget::popdownmenu_search_dir(), octave::news_reader::process(), octave::main_window::read_settings(), octave::main_window::request_new_function(), octave::file_editor::request_open_file(), octave::main_window::request_open_file(), octave::main_window::request_reload_settings(), octave::main_window::restore_create_file_setting(), octave::find_dialog::restore_settings(), octave::file_editor::save_session(), octave::find_dialog::save_settings(), octave::documentation::save_settings(), octave::files_dock_widget::save_settings(), octave::find_files_dialog::save_settings(), octave::history_dock_widget::save_settings(), octave::octave_dock_widget::save_settings(), octave::set_path_dialog::save_settings(), octave::workspace_view::save_settings(), octave::octave_dock_widget::set_focus_predecessor(), octave::shortcut_manager::set_shortcut(), octave::workspace_view::setModel(), octave::shortcut_manager::shortcut(), octave::settings_dialog::show_tab(), octave::files_dock_widget::toggle_header(), octave::workspace_view::toggle_header(), octave::file_editor::toggle_preference(), octave::settings_dialog::update_editor_lexers(), octave::settings_dialog::update_lexer(), octave::file_editor_tab::update_lexer_settings(), octave::settings_dialog::update_terminal_colors(), octave::settings_dialog::update_varedit_colors(), octave::settings_dialog::update_workspace_colors(), octave::settings_dialog::write_changed_settings(), octave::settings_dialog::write_lexer_settings(), and octave::main_window::write_settings().

get_shortcut_manager()

shortcut_manager & octave::base_qobject::get_shortcut_manager ( void  )

inline

Definition at line 144 of file octave-qobject.h.

References m_shortcut_manager.

Referenced by octave::main_window::main_window(), octave::octave_dock_widget::octave_dock_widget(), octave::settings_dialog::settings_dialog(), octave::main_window::configure_shortcuts(), octave::settings_dialog::default_shortcut_set(), octave::settings_dialog::export_shortcut_set(), octave::file_editor::handle_exit_debug_mode(), octave::settings_dialog::import_shortcut_set(), octave::dw_main_window::notice_settings(), octave::variable_editor::notice_settings(), octave::documentation::notice_settings(), octave::file_editor::set_shortcuts(), and octave::settings_dialog::write_changed_settings().

get_workspace_model()

workspace_model * octave::base_qobject::get_workspace_model ( void  )

inline

Definition at line 164 of file octave-qobject.h.

References m_workspace_model.

Referenced by octave::octave_qscintilla::event().

gui_running()

bool octave::base_qobject::gui_running

(

void

)

const

Definition at line 444 of file octave-qobject.cc.

References octave::qt_application::gui_running(), and m_app_context.

handle_variable_editor_update

void octave::base_qobject::handle_variable_editor_update ( void  )

slot

Definition at line 873 of file octave-qobject.cc.

References interpreter::get_evaluator(), interpreter::get_event_manager(), tree_evaluator::get_symbol_info(), interpreter_event(), and event_manager::set_workspace().

Referenced by variable_editor_widget().

have_terminal_window()

bool octave::base_qobject::have_terminal_window ( void  ) const

inline

Definition at line 129 of file octave-qobject.h.

References m_terminal_widget.

history_widget()

QPointer< history_dock_widget > octave::base_qobject::history_widget

(

main_window *

mw = nullptr

)

Definition at line 542 of file octave-qobject.cc.

References octave::history_dock_widget::append_history(), octave::qt_interpreter_events::append_history_signal(), octave::history_dock_widget::clear_history(), octave::qt_interpreter_events::clear_history_signal(), interpreter::get_event_manager(), interpreter_event(), m_history_widget, qt_link(), octave::history_dock_widget::set_history(), event_manager::set_history(), and octave::qt_interpreter_events::set_history_signal().

Referenced by octave::main_window::adopt_history_widget(), and show_command_history_window().

interpreter_event [1/2]

void octave::base_qobject::interpreter_event ( const fcn_callback &  fcn )

slot

Definition at line 966 of file octave-qobject.cc.

References octave::interpreter_qobject::interpreter_event(), and m_interpreter_qobj.

Referenced by base_qobject(), close_gui(), connect_interpreter_events(), octave::main_window::construct(), execute_command(), handle_variable_editor_update(), history_widget(), and workspace_widget().

interpreter_event [2/2]

void octave::base_qobject::interpreter_event ( const meth_callback &  meth )

slot

Definition at line 978 of file octave-qobject.cc.

References octave::interpreter_qobject::interpreter_event(), and m_interpreter_qobj.

interpreter_interrupt

void octave::base_qobject::interpreter_interrupt ( void  )

slot

Definition at line 990 of file octave-qobject.cc.

References octave::interpreter_qobject::interrupt(), and m_interpreter_qobj.

Referenced by terminal_widget().

interpreter_pause

void octave::base_qobject::interpreter_pause ( void  )

slot

Definition at line 998 of file octave-qobject.cc.

References application::experimental_terminal_widget(), m_app_context, m_interpreter_qobj, and octave::interpreter_qobject::pause().

Referenced by terminal_widget().

interpreter_qobj()

interpreter_qobject * octave::base_qobject::interpreter_qobj ( void  )

inline

Definition at line 159 of file octave-qobject.h.

References m_interpreter_qobj.

Referenced by octave::main_window::adopt_editor_widget(), octave::main_window::construct(), octave::main_window::construct_octave_qt_link(), octave::main_window::file_remove_proxy(), and octave::main_window::handle_set_path_dialog_request().

interpreter_ready

void octave::base_qobject::interpreter_ready ( void  )

slot

Definition at line 961 of file octave-qobject.cc.

References m_interpreter_ready.

Referenced by base_qobject().

interpreter_resume

void octave::base_qobject::interpreter_resume ( void  )

slot

Definition at line 1010 of file octave-qobject.cc.

References application::experimental_terminal_widget(), m_app_context, m_interpreter_qobj, and octave::interpreter_qobject::resume().

Referenced by terminal_widget().

interpreter_stop

void octave::base_qobject::interpreter_stop ( void  )

slot

Definition at line 1004 of file octave-qobject.cc.

References application::experimental_terminal_widget(), m_app_context, m_interpreter_qobj, and octave::interpreter_qobject::stop().

Referenced by terminal_widget().

is_gui_app()

bool octave::base_qobject::is_gui_app ( void  ) const

inline

Definition at line 204 of file octave-qobject.h.

References m_gui_app.

Referenced by octave::main_window::closeEvent().

main_thread()

QThread * octave::base_qobject::main_thread ( void  )

inline

Definition at line 197 of file octave-qobject.h.

References m_main_thread.

qapplication()

QApplication * octave::base_qobject::qapplication ( void  )

inline

Definition at line 120 of file octave-qobject.h.

References m_qapplication.

Referenced by octave::main_window::main_window(), and octave::main_window::notice_settings().

qt_link()

qt_interpreter_events * octave::base_qobject::qt_link ( void  )

inline

Definition at line 154 of file octave-qobject.h.

References m_qt_interpreter_events.

Referenced by base_qobject(), documentation_widget(), file_browser_widget(), history_widget(), octave::interpreter_qobject::qt_link(), start_gui(), terminal_widget(), variable_editor_widget(), and workspace_widget().

release_notes_widget()

QPointer< release_notes > octave::base_qobject::release_notes_widget

(

void

)

Definition at line 731 of file octave-qobject.cc.

References m_release_notes.

Referenced by show_release_notes().

show_command_history_window

void octave::base_qobject::show_command_history_window ( void  )

slot

Definition at line 832 of file octave-qobject.cc.

References history_widget(), and m_history_widget.

Referenced by base_qobject().

show_community_news

void octave::base_qobject::show_community_news ( int  serial )

slot

Definition at line 893 of file octave-qobject.cc.

References community_news_widget(), and m_community_news.

Referenced by base_qobject(), and start_gui().

show_documentation_window

void octave::base_qobject::show_documentation_window ( const QString &  file )

slot

Definition at line 805 of file octave-qobject.cc.

References documentation_widget(), m_documentation_widget, and octave::documentation_dock_widget::showDoc().

Referenced by base_qobject(), octave::octave_qscintilla::contextmenu_help_doc(), and QTerminal::doc_on_expression().

show_file_browser_window

void octave::base_qobject::show_file_browser_window ( void  )

slot

Definition at line 820 of file octave-qobject.cc.

References file_browser_widget(), and m_file_browser_widget.

Referenced by base_qobject().

show_release_notes

void octave::base_qobject::show_release_notes ( void  )

slot

Definition at line 901 of file octave-qobject.cc.

References m_release_notes, and release_notes_widget().

Referenced by base_qobject(), and start_gui().

show_terminal_window

void octave::base_qobject::show_terminal_window ( void  )

slot

Definition at line 792 of file octave-qobject.cc.

References m_terminal_widget, and terminal_widget().

Referenced by base_qobject().

show_variable_editor_window

void octave::base_qobject::show_variable_editor_window ( const QString &  name, const octave_value &  value  )

slot

Definition at line 856 of file octave-qobject.cc.

References octave::variable_editor::edit_variable(), m_variable_editor_widget, name, and variable_editor_widget().

Referenced by base_qobject().

show_workspace_window

void octave::base_qobject::show_workspace_window ( void  )

slot

Definition at line 844 of file octave-qobject.cc.

References m_workspace_widget, and workspace_widget().

Referenced by base_qobject().

start_gui

void octave::base_qobject::start_gui ( bool  gui_app )

slot

Definition at line 748 of file octave-qobject.cc.

References close_gui(), octave::main_window::close_gui_signal(), octave::qt_interpreter_events::close_gui_signal(), application::experimental_terminal_widget(), octave::main_window::focus_window(), octave::qt_interpreter_events::focus_window_signal(), octave::qt_application::gui_running(), octave::main_window::handle_octave_ready(), m_app_context, m_gui_app, m_interpreter_qobj, m_interpreter_ready, m_main_window, m_qapplication, qt_link(), octave::interpreter_qobject::ready(), show_community_news(), octave::main_window::show_community_news_signal(), show_release_notes(), and octave::main_window::show_release_notes_signal().

Referenced by base_qobject().

start_main_thread()

void octave::base_qobject::start_main_thread

(

void

)

Definition at line 405 of file octave-qobject.cc.

References m_interpreter_qobj, and m_main_thread.

Referenced by base_qobject().

terminal_widget()

QPointer< terminal_dock_widget > octave::base_qobject::terminal_widget

(

main_window *

mw = nullptr

)

Definition at line 450 of file octave-qobject.cc.

References connect_interpreter_events(), experimental_terminal_widget(), interpreter_interrupt(), octave::terminal_dock_widget::interpreter_output(), octave::qt_interpreter_events::interpreter_output_signal(), octave::command_widget::interpreter_pause(), interpreter_pause(), octave::command_widget::interpreter_resume(), interpreter_resume(), octave::command_widget::interpreter_stop(), interpreter_stop(), QTerminal::interrupt_signal(), m_terminal_widget, qt_link(), octave::terminal_dock_widget::update_prompt(), and octave::qt_interpreter_events::update_prompt_signal().

Referenced by octave::main_window::adopt_terminal_widget(), and show_terminal_window().

variable_editor_widget()

QPointer< variable_editor > octave::base_qobject::variable_editor_widget

(

main_window *

mw = nullptr

)

Definition at line 694 of file octave-qobject.cc.

References octave::variable_editor::command_signal(), execute_command(), handle_variable_editor_update(), m_variable_editor_widget, qt_link(), octave::variable_editor::refresh(), octave::qt_interpreter_events::refresh_variable_editor_signal(), and octave::variable_editor::updated().

Referenced by octave::main_window::adopt_variable_editor_widget(), and show_variable_editor_window().

workspace_widget()

QPointer< workspace_view > octave::base_qobject::workspace_widget

(

main_window *

mw = nullptr

)

Definition at line 577 of file octave-qobject.cc.

References octave::workspace_model::clear_workspace(), octave::qt_interpreter_events::clear_workspace_signal(), octave::workspace_view::copy_variable_value_to_clipboard(), event_manager::edit_variable(), octave::workspace_view::edit_variable_signal(), octave::Utils::fromStdString(), interpreter::get_current_scope(), interpreter::get_evaluator(), interpreter::get_event_manager(), octave::workspace_view::handle_model_changed(), interpreter_event(), octave_value::is_undefined(), m_workspace_model, m_workspace_widget, octave::workspace_model::model_changed(), name, octave_value::print_raw(), qt_link(), octave::symbol_scope::rename(), octave::workspace_view::rename_variable_signal(), octave::workspace_model::set_workspace(), event_manager::set_workspace(), octave::qt_interpreter_events::set_workspace_signal(), and interpreter::varval().

Referenced by octave::main_window::adopt_workspace_widget(), and show_workspace_window().

Member Data Documentation

m_app_context

qt_application& octave::base_qobject::m_app_context

protected

Definition at line 261 of file octave-qobject.h.

Referenced by base_qobject(), app_context(), close_gui(), experimental_terminal_widget(), gui_running(), interpreter_pause(), interpreter_resume(), interpreter_stop(), and start_gui().

m_argc

int octave::base_qobject::m_argc

protected

Definition at line 266 of file octave-qobject.h.

m_argv

char** octave::base_qobject::m_argv

protected

Definition at line 267 of file octave-qobject.h.

Referenced by ~base_qobject().

m_community_news

QPointer<community_news> octave::base_qobject::m_community_news

protected

Definition at line 311 of file octave-qobject.h.

Referenced by ~base_qobject(), community_news_widget(), and show_community_news().

m_documentation_widget

QPointer<documentation_dock_widget> octave::base_qobject::m_documentation_widget

protected

Definition at line 299 of file octave-qobject.h.

Referenced by ~base_qobject(), documentation_widget(), and show_documentation_window().

m_editor_widget

QPointer<file_editor_interface> octave::base_qobject::m_editor_widget

protected

Definition at line 307 of file octave-qobject.h.

Referenced by ~base_qobject(), and editor_widget().

m_file_browser_widget

QPointer<files_dock_widget> octave::base_qobject::m_file_browser_widget

protected

Definition at line 301 of file octave-qobject.h.

Referenced by ~base_qobject(), file_browser_widget(), and show_file_browser_window().

m_gui_app

bool octave::base_qobject::m_gui_app

protected

Definition at line 287 of file octave-qobject.h.

Referenced by is_gui_app(), and start_gui().

m_gui_tr

QTranslator* octave::base_qobject::m_gui_tr

protected

Definition at line 276 of file octave-qobject.h.

Referenced by ~base_qobject(), and config_translators().

m_history_widget

QPointer<history_dock_widget> octave::base_qobject::m_history_widget

protected

Definition at line 303 of file octave-qobject.h.

Referenced by ~base_qobject(), history_widget(), and show_command_history_window().

m_interpreter_qobj

interpreter_qobject* octave::base_qobject::m_interpreter_qobj

protected

Definition at line 283 of file octave-qobject.h.

Referenced by base_qobject(), ~base_qobject(), interpreter_event(), interpreter_interrupt(), interpreter_pause(), interpreter_qobj(), interpreter_resume(), interpreter_stop(), start_gui(), and start_main_thread().

m_interpreter_ready

bool octave::base_qobject::m_interpreter_ready

protected

Definition at line 289 of file octave-qobject.h.

Referenced by base_qobject(), interpreter_ready(), and start_gui().

m_main_thread

QThread* octave::base_qobject::m_main_thread

protected

Definition at line 285 of file octave-qobject.h.

Referenced by base_qobject(), exec(), main_thread(), and start_main_thread().

m_main_window

main_window* octave::base_qobject::m_main_window

protected

Definition at line 315 of file octave-qobject.h.

Referenced by base_qobject(), ~base_qobject(), close_gui(), confirm_shutdown(), get_main_window(), and start_gui().

m_qapplication

octave_qapplication* octave::base_qobject::m_qapplication

protected

Definition at line 269 of file octave-qobject.h.

Referenced by base_qobject(), ~base_qobject(), config_translators(), exec(), qapplication(), and start_gui().

m_qsci_tr

QTranslator* octave::base_qobject::m_qsci_tr

protected

Definition at line 277 of file octave-qobject.h.

Referenced by ~base_qobject(), and config_translators().

m_qt_interpreter_events

std::shared_ptr<qt_interpreter_events> octave::base_qobject::m_qt_interpreter_events

protected

Definition at line 281 of file octave-qobject.h.

Referenced by get_qt_interpreter_events(), and qt_link().

m_qt_tr

QTranslator* octave::base_qobject::m_qt_tr

protected

Definition at line 275 of file octave-qobject.h.

Referenced by ~base_qobject(), and config_translators().

m_release_notes

QPointer<release_notes> octave::base_qobject::m_release_notes

protected

Definition at line 313 of file octave-qobject.h.

Referenced by release_notes_widget(), and show_release_notes().

m_resource_manager

resource_manager octave::base_qobject::m_resource_manager

protected

Definition at line 271 of file octave-qobject.h.

Referenced by base_qobject(), config_translators(), and get_resource_manager().

m_shortcut_manager

shortcut_manager octave::base_qobject::m_shortcut_manager

protected

Definition at line 273 of file octave-qobject.h.

Referenced by base_qobject(), and get_shortcut_manager().

m_terminal_widget

QPointer<terminal_dock_widget> octave::base_qobject::m_terminal_widget

protected

Definition at line 297 of file octave-qobject.h.

Referenced by ~base_qobject(), have_terminal_window(), show_terminal_window(), and terminal_widget().

m_translators_installed

bool octave::base_qobject::m_translators_installed

protected

Definition at line 279 of file octave-qobject.h.

Referenced by config_translators().

m_variable_editor_widget

QPointer<variable_editor> octave::base_qobject::m_variable_editor_widget

protected

Definition at line 309 of file octave-qobject.h.

Referenced by ~base_qobject(), show_variable_editor_window(), and variable_editor_widget().

m_workspace_model

workspace_model* octave::base_qobject::m_workspace_model

protected

Definition at line 291 of file octave-qobject.h.

Referenced by ~base_qobject(), get_workspace_model(), and workspace_widget().

m_workspace_widget

QPointer<workspace_view> octave::base_qobject::m_workspace_widget

protected

Definition at line 305 of file octave-qobject.h.

Referenced by ~base_qobject(), show_workspace_window(), and workspace_widget().

---

The documentation for this class was generated from the following files:

• libgui/src/octave-qobject.h
• libgui/src/octave-qobject.cc
