#include "Panel.h"

Inheritance diagram for octave::Panel:

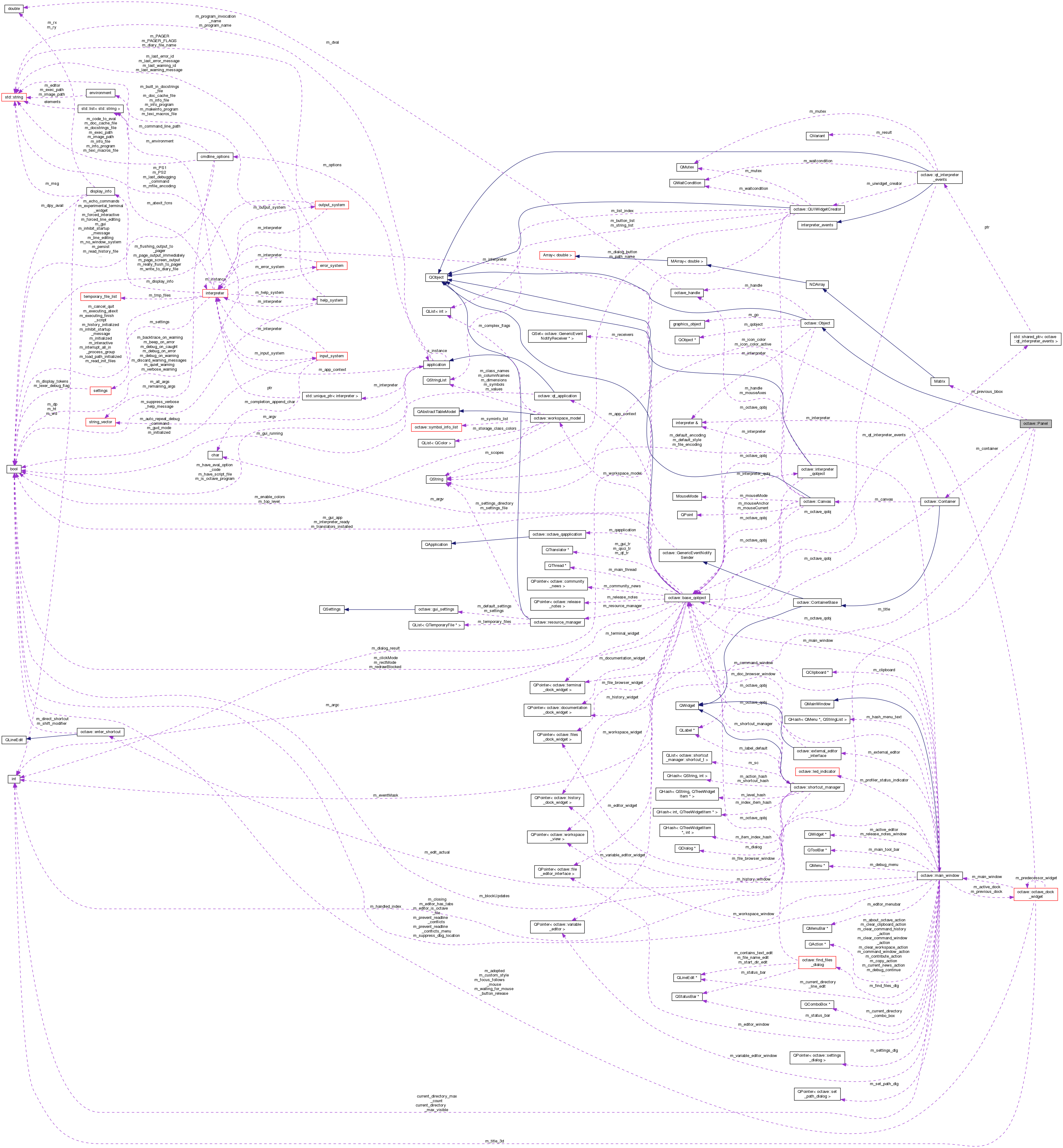

Collaboration diagram for octave::Panel:

[legend]

Public Slots
void	objectDestroyed (QObject *obj=nullptr)

void	slotFinalize (void)

void	slotPrint (const QString &file_cmd, const QString &term)

void	slotRedraw (void)

void	slotShow (void)

void	slotUpdate (int pId)

Signals
void	gh_callback_event (const graphics_handle &h, const std::string &name)

void	gh_callback_event (const graphics_handle &h, const std::string &name, const octave_value &data)

void	gh_set_event (const graphics_handle &h, const std::string &name, const octave_value &value)

void	gh_set_event (const graphics_handle &h, const std::string &name, const octave_value &value, bool notify_toolkit)

void	gh_set_event (const graphics_handle &h, const std::string &name, const octave_value &value, bool notify_toolkit, bool redraw_figure)

void	interpreter_event (const octave::fcn_callback &fcn)

void	interpreter_event (const octave::meth_callback &meth)

Public Member Functions
	Panel (octave::base_qobject &oct_qobj, octave::interpreter &interp, const graphics_object &go, QFrame *frame)

	~Panel (void)

void	do_connections (const QObject receiver, const QObject emitter=nullptr)

bool	eventFilter (QObject watched, QEvent event)

Container *	innerContainer (void)

graphics_object	object (void) const

base_properties &	properties (void)

template<typename T >
T::properties &	properties (void)

const base_properties &	properties (void) const

template<typename T >
const T::properties &	properties (void) const

virtual QObject *	qObject (void)

template<typename T >
T *	qWidget (void)

Static Public Member Functions
static Panel *	create (octave::base_qobject &oct_qobj, octave::interpreter &interp, const graphics_object &go)

static Object *	fromQObject (QObject *obj)

Protected Member Functions
virtual void	beingDeleted (void)

virtual void	finalize (void)

void	init (QObject *obj, bool callBase=false)

virtual void	print (const QString &file_cmd, const QString &term)

void	redraw (void)

virtual void	show (void)

void	update (int pId)

Static Protected Member Functions
static Object *	parentObject (octave::interpreter &interp, const graphics_object &go)

Protected Attributes
graphics_object	m_go

graphics_handle	m_handle

octave::interpreter &	m_interpreter

octave::base_qobject &	m_octave_qobj

QObject *	m_qobject

Private Member Functions
void	updateLayout (void)

Private Attributes
bool	m_blockUpdates

Container *	m_container

Matrix	m_previous_bbox

QLabel *	m_title

Detailed Description

Definition at line 45 of file Panel.h.

Constructor & Destructor Documentation

◆ Panel()

octave::Panel::Panel	(	octave::base_qobject &	oct_qobj,
		octave::interpreter &	interp,
		const graphics_object &	go,
		QFrame *	frame
	)

Definition at line 112 of file Panel.cc.

References octave::Canvas::addEventMask(), octave::Container::canvas(), octave::Utils::computeFont< uipanel >(), fcn_callback, octave::frameStyleFromProperties(), octave::Utils::fromStdString(), octave::Canvas::KeyPress, octave::Canvas::KeyRelease, m_container, octave::Object::m_handle, m_title, octave::Utils::properties(), octave::math::round(), octave::setupPalette(), and Faddeeva::w().

Referenced by create().

◆ ~Panel()

octave::Panel::~Panel ( void )

Definition at line 172 of file Panel.cc.

Member Function Documentation

◆ beingDeleted()

void octave::Object::beingDeleted ( void )

protectedvirtualinherited

Reimplemented in octave::Figure, and octave::ToolBar.

Definition at line 191 of file Object.cc.

Referenced by octave::Object::slotUpdate().

◆ create()

Panel * octave::Panel::create	(	octave::base_qobject &	oct_qobj,
		octave::interpreter &	interp,
		const graphics_object &	go
	)

static

Definition at line 96 of file Panel.cc.

References Panel(), octave::Object::innerContainer(), and octave::Object::parentObject().

Referenced by octave::qt_graphics_toolkit::create_object().

◆ do_connections()

void octave::Panel::do_connections	(	const QObject *	receiver,
		const QObject *	emitter = `nullptr`
	)

virtual

Reimplemented from octave::Object.

Definition at line 424 of file Panel.cc.

References octave::Container::canvas(), octave::Object::do_connections(), m_container, and octave::Object::m_handle.

◆ eventFilter()

bool octave::Panel::eventFilter	(	QObject *	watched,
		QEvent *	event
	)

Definition at line 176 of file Panel.cc.

References octave::Utils::computeFont< uipanel >(), octave::ContextMenu::executeAt(), m_blockUpdates, m_container, octave::Object::m_interpreter, m_title, octave::Object::object(), octave::Utils::properties(), octave::Object::qObject(), and updateLayout().

◆ finalize()

void octave::Object::finalize ( void )

protectedvirtualinherited

Definition at line 168 of file Object.cc.

References octave::Object::m_qobject.

Referenced by octave::Object::slotFinalize().

◆ fromQObject()

Object * octave::Object::fromQObject ( QObject * obj )

staticinherited

Definition at line 214 of file Object.cc.

Referenced by octave::ToolBar::ToolBar(), octave::ButtonGroup::buttonClicked(), octave::ButtonGroup::buttonToggled(), octave::Figure::redraw(), octave::Container::resizeEvent(), octave::Figure::update(), and octave::Menu::updateSiblingPositions().

◆ gh_callback_event [1/2]

void octave::Object::gh_callback_event	(	const graphics_handle &	h,
		const std::string &	name
	)

signalinherited

Referenced by octave::ContextMenu::aboutToShow(), octave::Menu::actionHovered(), octave::Menu::actionTriggered(), octave::ButtonGroup::buttonClicked(), octave::ButtonControl::clicked(), octave::PushTool::clicked(), octave::PopupMenuControl::currentIndexChanged(), octave::Object::do_connections(), octave::EditControl::editingFinished(), octave::BaseControl::eventFilter(), octave::Table::eventFilter(), octave::Figure::eventNotifyBefore(), octave::Table::itemSelectionChanged(), octave::EditControl::returnPressed(), octave::Table::sendCellEditCallback(), octave::ListBoxControl::sendSelectionChange(), octave::ButtonControl::toggled(), octave::ToggleTool::triggered(), and octave::SliderControl::valueChanged().

◆ gh_callback_event [2/2]

void octave::Object::gh_callback_event	(	const graphics_handle &	h,
		const std::string &	name,
		const octave_value &	data
	)

signalinherited

◆ gh_set_event [1/3]

void octave::Object::gh_set_event	(	const graphics_handle &	h,
		const std::string &	name,
		const octave_value &	value
	)

signalinherited

Referenced by octave::ContextMenu::aboutToHide(), octave::ContextMenu::aboutToShow(), octave::ButtonGroup::buttonToggled(), octave::Table::checkBoxClicked(), octave::Table::comboBoxCurrentIndexChanged(), octave::PopupMenuControl::currentIndexChanged(), octave::Object::do_connections(), octave::EditControl::editingFinished(), octave::BaseControl::eventFilter(), octave::Table::eventFilter(), octave::Table::itemChanged(), octave::EditControl::returnPressed(), octave::ListBoxControl::sendSelectionChange(), octave::ButtonControl::toggled(), octave::ToggleTool::triggered(), octave::PopupMenuControl::update(), octave::Figure::updateBoundingBox(), octave::Table::updateExtent(), and octave::SliderControl::valueChanged().

◆ gh_set_event [2/3]

void octave::Object::gh_set_event	(	const graphics_handle &	h,
		const std::string &	name,
		const octave_value &	value,
		bool	notify_toolkit
	)

signalinherited

◆ gh_set_event [3/3]

void octave::Object::gh_set_event	(	const graphics_handle &	h,
		const std::string &	name,
		const octave_value &	value,
		bool	notify_toolkit,
		bool	redraw_figure
	)
