octave::math::svd< T > Class Template Reference

#include "svd.h"

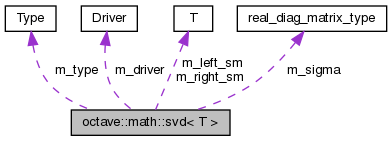

Collaboration diagram for octave::math::svd< T >:

Public Types
typedef T::real_diag_matrix_type	DM_T
enum class	Driver { GESVD , GESDD , GEJSV }
enum class	Type { std , economy , sigma_only }

Public Member Functions
	svd (const svd &a)
	svd (const T &a, svd::Type type=svd::Type::std, svd::Driver driver=svd::Driver::GESVD)
	svd (void)
	~svd (void)=default
T	left_singular_matrix (void) const
svd &	operator= (const svd &a)
T	right_singular_matrix (void) const
DM_T	singular_values (void) const

Private Types
typedef DM_T::element_type	DM_P
typedef T::element_type	P

Private Member Functions
void	gejsv (char &joba, char &jobu, char &jobv, char &jobr, char &jobt, char &jobp, octave_f77_int_type m, octave_f77_int_type n, P *tmp_data, octave_f77_int_type m1, DM_P *s_vec, P *u, P *v, octave_f77_int_type nrow_v1, std::vector< P > &work, octave_f77_int_type &lwork, std::vector< octave_f77_int_type > &iwork, octave_f77_int_type &info)
void	gesdd (char &jobz, octave_f77_int_type m, octave_f77_int_type n, P *tmp_data, octave_f77_int_type m1, DM_P *s_vec, P *u, P *vt, octave_f77_int_type nrow_vt1, std::vector< P > &work, octave_f77_int_type &lwork, octave_f77_int_type *iwork, octave_f77_int_type &info)
void	gesvd (char &jobu, char &jobv, octave_f77_int_type m, octave_f77_int_type n, P *tmp_data, octave_f77_int_type m1, DM_P *s_vec, P *u, P *vt, octave_f77_int_type nrow_vt1, std::vector< P > &work, octave_f77_int_type &lwork, octave_f77_int_type &info)

Private Attributes
svd::Driver	m_driver
T	m_left_sm
T	m_right_sm
DM_T	m_sigma
svd::Type	m_type

Detailed Description

template<typename T>
class octave::math::svd< T >

Definition at line 38 of file svd.h.

Member Typedef Documentation

DM_P

template<typename T >

typedef DM_T::element_type octave::math::svd< T >::DM_P

private

Definition at line 97 of file svd.h.

DM_T

template<typename T >

typedef T::real_diag_matrix_type octave::math::svd< T >::DM_T

Definition at line 44 of file svd.h.

P

template<typename T >

typedef T::element_type octave::math::svd< T >::P

private

Definition at line 96 of file svd.h.

Member Enumeration Documentation

Driver

template<typename T >

enum class octave::math::svd::Driver

strong

Enumerator
GESVD
GESDD
GEJSV

Definition at line 53 of file svd.h.

Type

template<typename T >

enum class octave::math::svd::Type

strong

Enumerator
std
economy
sigma_only

Definition at line 46 of file svd.h.

Constructor & Destructor Documentation

svd() [1/3]

template<typename T >

octave::math::svd< T >::svd ( void  )

inline

Definition at line 60 of file svd.h.

svd() [2/3]

template<typename T >

svd< T >::svd	(	const T &	a,
		svd< T >::Type	type = svd< T >::Type::std,
		svd< T >::Driver	driver = svd< T >::Driver::GESVD
	)

Definition at line 670 of file svd.cc.

References current_liboctave_error_handler, octave::math::svd< T >::economy, octave::math::svd< T >::GEJSV, octave::math::svd< T >::gejsv(), octave::math::svd< T >::GESDD, octave::math::svd< T >::gesdd(), octave::math::svd< T >::GESVD, octave::math::svd< T >::gesvd(), octave::math::svd< T >::m_driver, octave::math::svd< T >::m_left_sm, octave::math::svd< T >::m_right_sm, octave::math::svd< T >::m_sigma, octave::math::svd< T >::m_type, max(), min(), octave::math::svd< T >::sigma_only, and octave::math::svd< T >::std.

svd() [3/3]

template<typename T >

octave::math::svd< T >::svd ( const svd< T > &  a )

inline

Definition at line 67 of file svd.h.

~svd()

template<typename T >

octave::math::svd< T >::~svd ( void  )

default

Member Function Documentation

gejsv()

template<typename T >

void octave::math::svd< T >::gejsv ( char &  joba, char &  jobu, char &  jobv, char &  jobr, char &  jobt, char &  jobp, octave_f77_int_type  m, octave_f77_int_type  n, P *  tmp_data, octave_f77_int_type  m1, DM_P *  s_vec, P *  u, P *  v, octave_f77_int_type  nrow_v1, std::vector< P > &  work, octave_f77_int_type &  lwork, std::vector< octave_f77_int_type > &  iwork, octave_f77_int_type &  info  )

private

Referenced by octave::math::svd< T >::svd().

gesdd()

template<typename T >

void octave::math::svd< T >::gesdd ( char &  jobz, octave_f77_int_type  m, octave_f77_int_type  n, P *  tmp_data, octave_f77_int_type  m1, DM_P *  s_vec, P *  u, P *  vt, octave_f77_int_type  nrow_vt1, std::vector< P > &  work, octave_f77_int_type &  lwork, octave_f77_int_type *  iwork, octave_f77_int_type &  info  )

private

Referenced by octave::math::svd< T >::svd().

gesvd()

template<typename T >

void octave::math::svd< T >::gesvd ( char &  jobu, char &  jobv, octave_f77_int_type  m, octave_f77_int_type  n, P *  tmp_data, octave_f77_int_type  m1, DM_P *  s_vec, P *  u, P *  vt, octave_f77_int_type  nrow_vt1, std::vector< P > &  work, octave_f77_int_type &  lwork, octave_f77_int_type &  info  )

private

Referenced by octave::math::svd< T >::svd().

left_singular_matrix()

template<typename T >

T svd< T >::left_singular_matrix

(

void

)

const

Definition at line 310 of file svd.cc.

References octave::math::svd< T >::sigma_only.

Referenced by ComplexMatrix::pseudo_inverse(), Matrix::pseudo_inverse(), FloatComplexMatrix::pseudo_inverse(), and FloatMatrix::pseudo_inverse().

operator=()

template<typename T >

svd & octave::math::svd< T >::operator= ( const svd< T > &  a )

inline

Definition at line 72 of file svd.h.

References octave::math::svd< T >::m_driver, octave::math::svd< T >::m_left_sm, octave::math::svd< T >::m_right_sm, octave::math::svd< T >::m_sigma, and octave::math::svd< T >::m_type.

right_singular_matrix()

template<typename T >

T svd< T >::right_singular_matrix

(

void

)

const

Definition at line 321 of file svd.cc.

References octave::math::svd< T >::sigma_only.

Referenced by ComplexMatrix::pseudo_inverse(), Matrix::pseudo_inverse(), FloatComplexMatrix::pseudo_inverse(), and FloatMatrix::pseudo_inverse().

singular_values()

template<typename T >

DM_T octave::math::svd< T >::singular_values ( void  ) const

inline

Definition at line 90 of file svd.h.

Referenced by ComplexMatrix::pseudo_inverse(), Matrix::pseudo_inverse(), FloatComplexMatrix::pseudo_inverse(), FloatMatrix::pseudo_inverse(), and octave::svd_matrix_norm().

Member Data Documentation

m_driver

template<typename T >

svd::Driver octave::math::svd< T >::m_driver

private

Definition at line 100 of file svd.h.

Referenced by octave::math::svd< T >::svd(), and octave::math::svd< T >::operator=().

m_left_sm

template<typename T >

T octave::math::svd< T >::m_left_sm

private

Definition at line 102 of file svd.h.

Referenced by octave::math::svd< T >::svd(), and octave::math::svd< T >::operator=().

m_right_sm

template<typename T >

T octave::math::svd< T >::m_right_sm

private

Definition at line 104 of file svd.h.

Referenced by octave::math::svd< T >::svd(), and octave::math::svd< T >::operator=().

m_sigma

template<typename T >

DM_T octave::math::svd< T >::m_sigma

private

Definition at line 103 of file svd.h.

Referenced by octave::math::svd< T >::svd(), and octave::math::svd< T >::operator=().

m_type

template<typename T >

svd::Type octave::math::svd< T >::m_type

private

Definition at line 99 of file svd.h.

Referenced by octave::math::svd< T >::svd(), and octave::math::svd< T >::operator=().

---

The documentation for this class was generated from the following files:

• liboctave/numeric/svd.h
• liboctave/numeric/svd.cc
